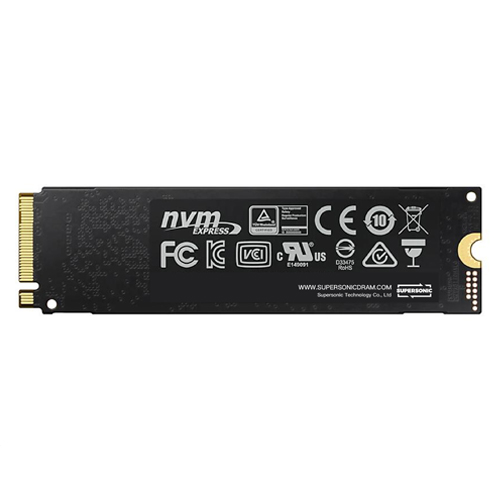

SG980 NVMe M.2 SSD

Overview:

Specifications：

Feature

application

Client PC

capacity

1,024GB ((1GB = 1 billion bytes of IDEMA) * The actual available capacity may be reduced (due to formatting, partitioning, operating system, application or other necessary occupation)

shape

M.2 (2280)

interface

PCIe Gen 3.0 x4, NVMe 1.3

Dimensions (width x height x depth)

80.15 x 22.15 x 2.38 (mm)

weight

Up to 8.0 g weight

NAND flash memory

V-NAND 2-bit MLC

Controller

Samsung Phoenix Controller

cache

Samsung 1GB low-power DDR4 SDRAM

Special Function

TRIM support

stand by

S.M.A.R.T

stand by

Garbage collection

Automatic garbage collection algorithm

Safety

AES 256-bit encryption (Class 0) TCG/Opal IEEE1667 (encrypted drive)

Device sleep mode support

Yes

Performance

Sequential reading

Up to 3,500 MB/s

* Performance may vary due to system hardware and configuration

Sequential write

Up to 2,700 MB/s

* Performance may vary due to system hardware and configuration

4KB random read (QD32):

Up to 500,000 IOPS

* Performance may vary due to system hardware and configuration

4KB random write (QD32):

Up to 500,000 IOPS

* Performance may vary due to system hardware and configuration

4KB random read (QD1):

Up to 15,000 IOPS

* Performance may vary due to system hardware and configuration

4KB random write (QD1):

Up to 55,000 IOPS

* Performance may vary due to system hardware and configuration

Use environment

Average power consumption (system level)

* Average: 5.7 W

* Maximum: 8.5 W (peak)

* Actual power consumption may vary due to system hardware and configuration.

Power consumption (standby)

Up to 30 mW

* Actual power consumption may vary due to system hardware and configuration.

Allowable voltage

3.3 V ± 5% allowable voltage

reliability

1.5 million hours (mean time between failures)

Operating temperature

0-70 ℃ operating temperature

Seismic

1,500 G & 0.5 ms (half sine)

Warranty

5-year limited warranty or 1,200 TBW limited warranty
